532nm拉曼激光器
532nm拉曼激光器
NBET-III-532-R/1~100mW
SINGLE LONGITUDINAL MODE GREEN LASER AT 532 nm
All solid state single longitudinal mode green laser at 532 nm is designed especially for Raman Spectrograph, which has the features of narrow spectral linewidth, high power stability, high wavelength stability and easy operating. They also can be used for sensing and biomedical applications.

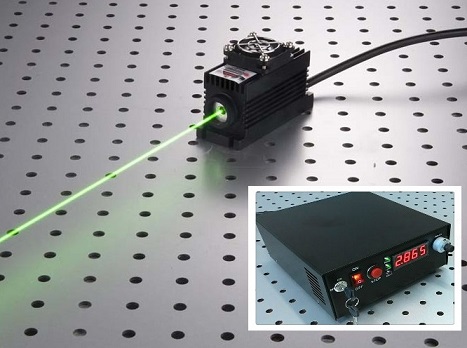

產品圖片
技術參數
Wavelength (nm) 532±1
Output power (mW) >1,5,10,20…100
Transverse mode TEM00
Central wavelength stability (rms, over 2 hours) (pm) <10
Longitude mode Single
Operating mode CW
Power Stability (rms, over 4 hours) <1%,<3%,<5%
Warm-up Time (minutes) <10
M2 factor <1.2
Beam divergence,full angle (mrad) <1.2
Beam Diameter at the aperture (mm) ~1.2
Beam height from base plate (mm) 24.8
Spectral linewidth (nm) < 0.00001
Pointing stability after warm-up (mrad) <0.05
Noise of amplitude (rms,1~20MHz) <0.5%
Coherence length (m) >50
Polarization ratio > 100:1
Power supply (90-264VAC) PSU-III-FDA
Modulation Modulation isn’t available
Operating temperature(℃) 10~35
Weight of driver (kg) 1.2
Expected lifetime (hours) 10000
Warranty 1 year
選型指南
|
NBET-FN-360nm |
360nm半導體激光器，數顯可調。 |
|
NBET -III-400/405/410/415nm |
400nm半導體激光器，數顯可調。 |
|
NBET-III-532nm |
532nm半導體激光器，數顯可調。 |
|
NBET-F-532nm |
532nm半導體激光器，數顯可調。 |
|
NBET-FN-532nm |
532nm半導體激光器，數顯可調。 |
|
NBET-D-785nm |
785nm半導體激光器，數顯可調。 |
|
NBET-III-1064nm |
1064nm半導體激光器，數顯可調。 |
